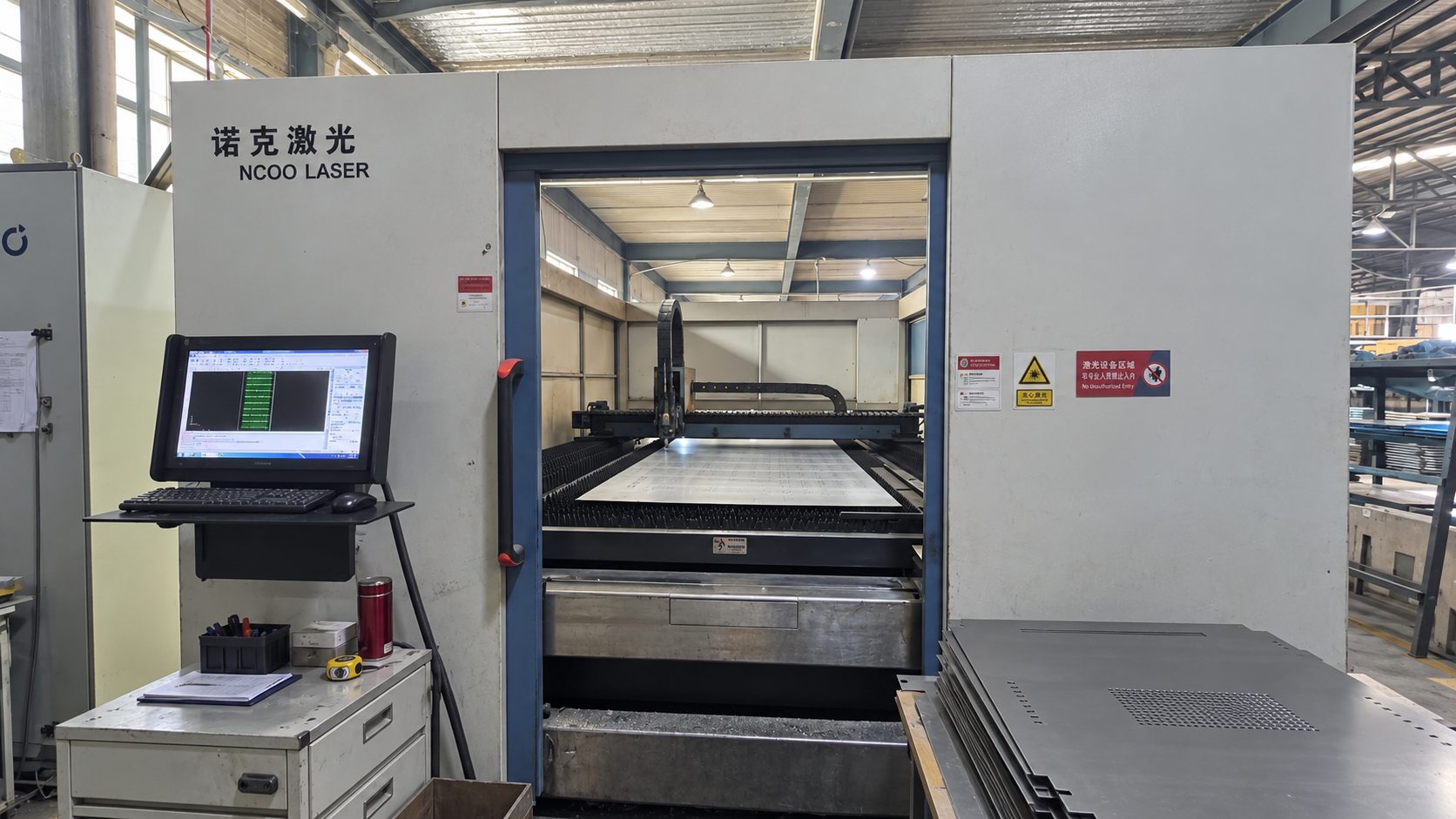

Laser cutting machine with control station and prepared sheet-metal cabinet panelsSheet-metal cutting / visible production
QUALITY / SYNSTRO

Quality starts with a defined product.

Confirmed requirements stay connected to manufacturing work, visible checks and the final product configuration.

View manufacturing
  1. 01Manufacturing processForm the cabinet structure
  2. 02Quality controlMeasure against the configuration
  3. 03Final verificationConfirm the visible result
MANUFACTURING PROCESS

From flat sheet to assembled cabinet.

Visible production stages move from sheet-metal preparation and forming to surface treatment and cabinet assembly.

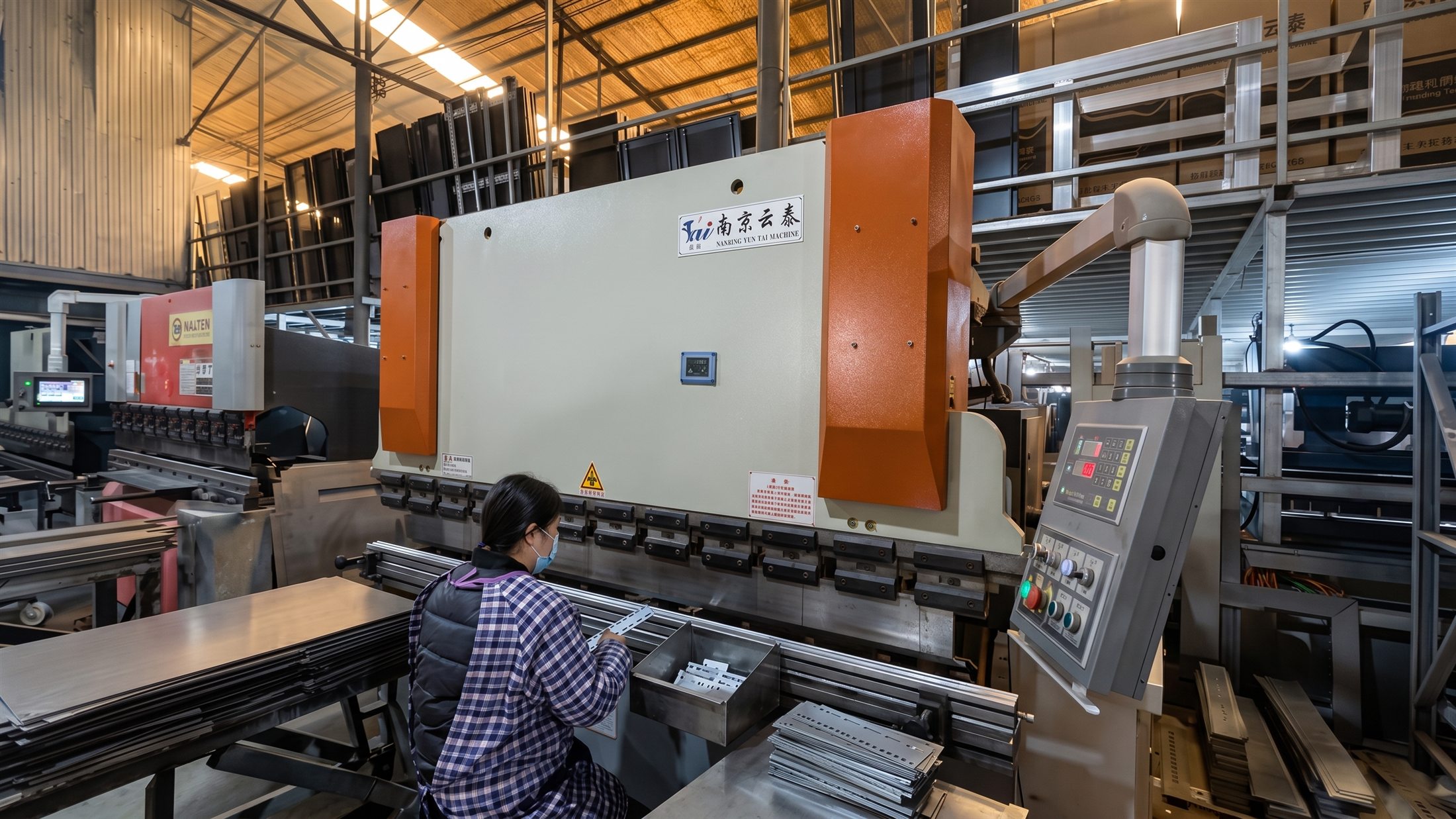

Operator forming sheet-metal cabinet parts at a press brake
02—03Punching & bendingPrepared panels are punched and formed before cabinet assembly.
01Cutting02Punching03Bending04Finishing05Coating06Assembly

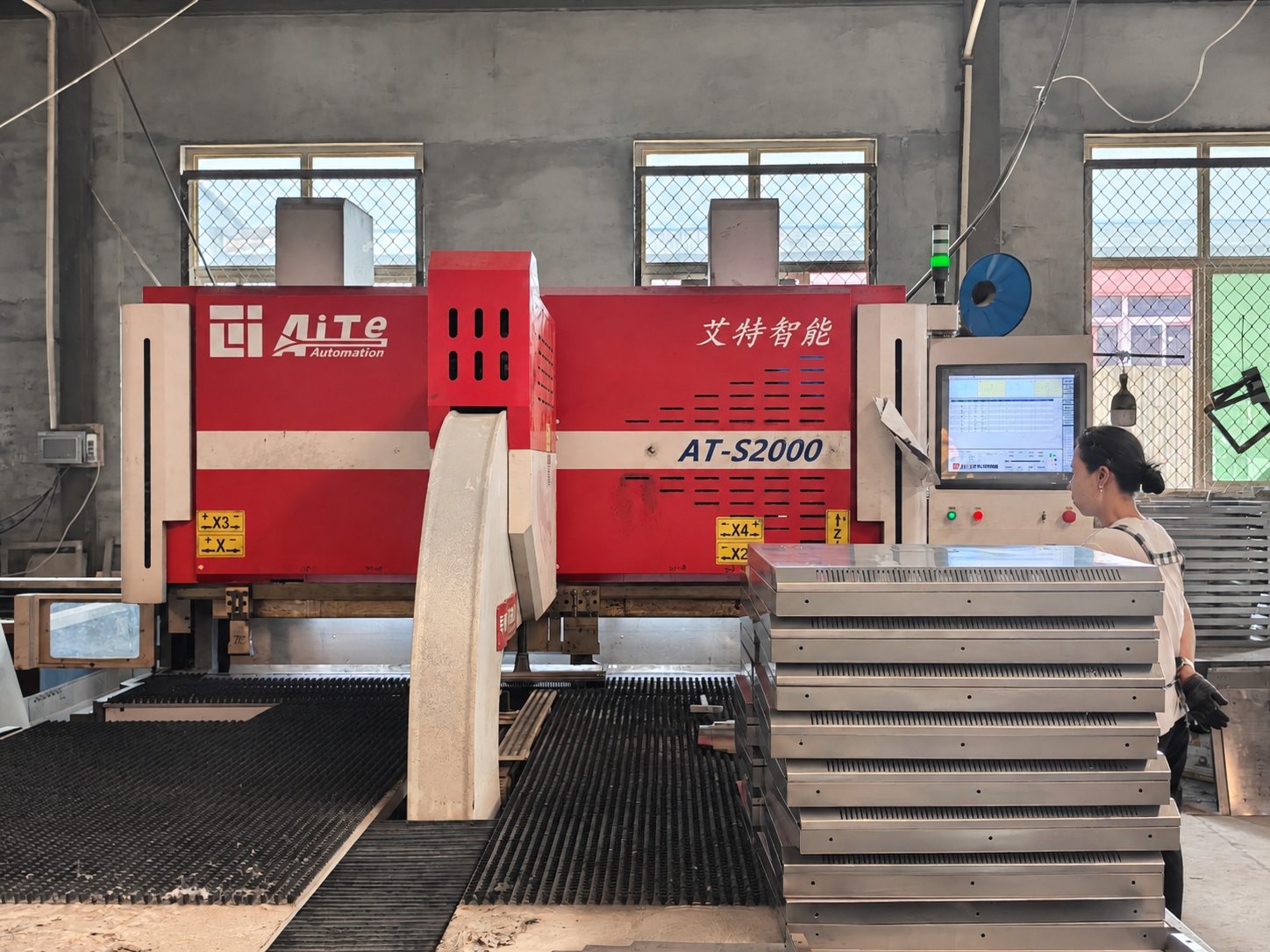

Operator at a CNC punching station beside prepared metal panels
02Punching

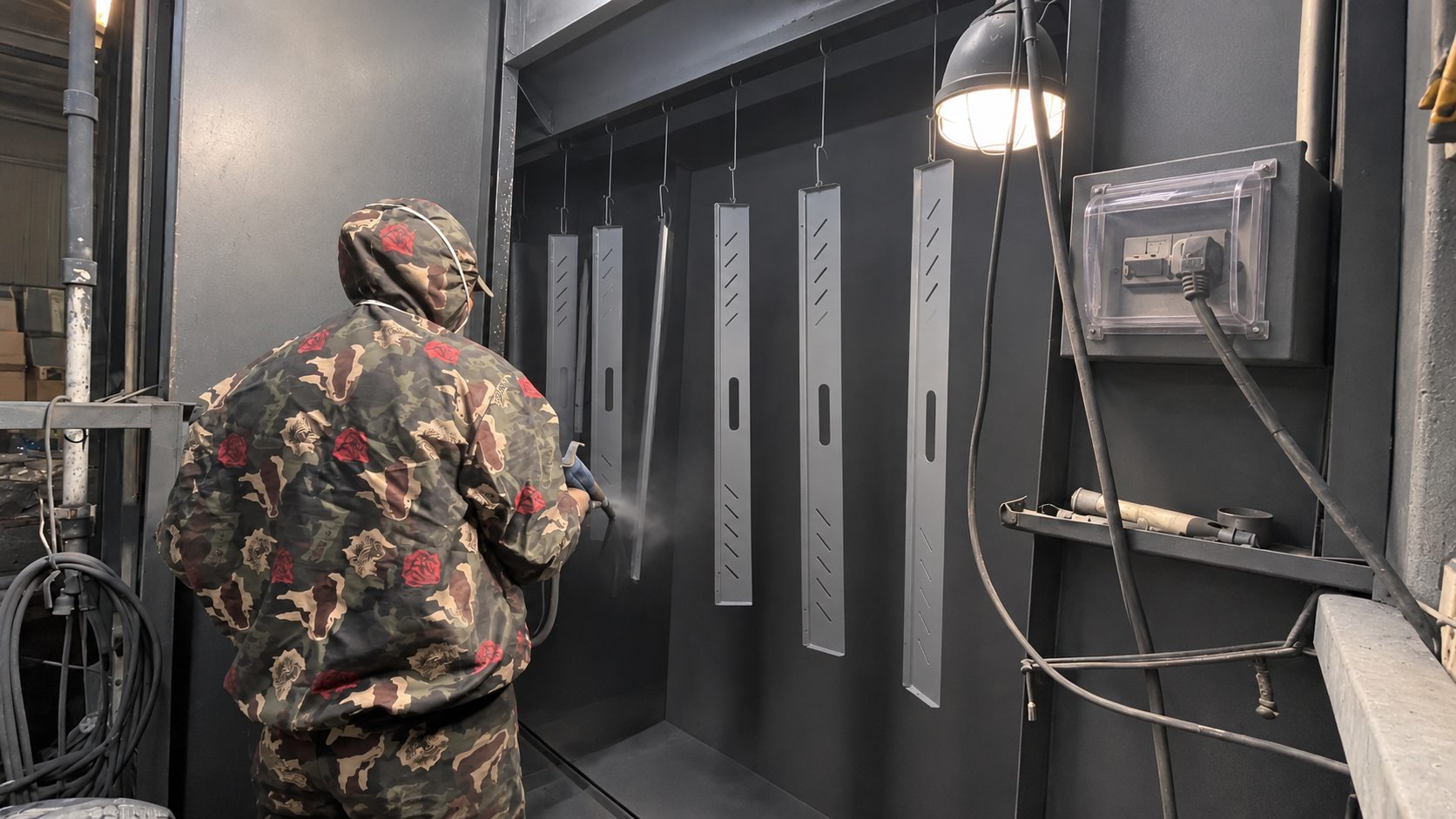

Operator applying a sprayed surface finish to suspended cabinet components
05Surface coating

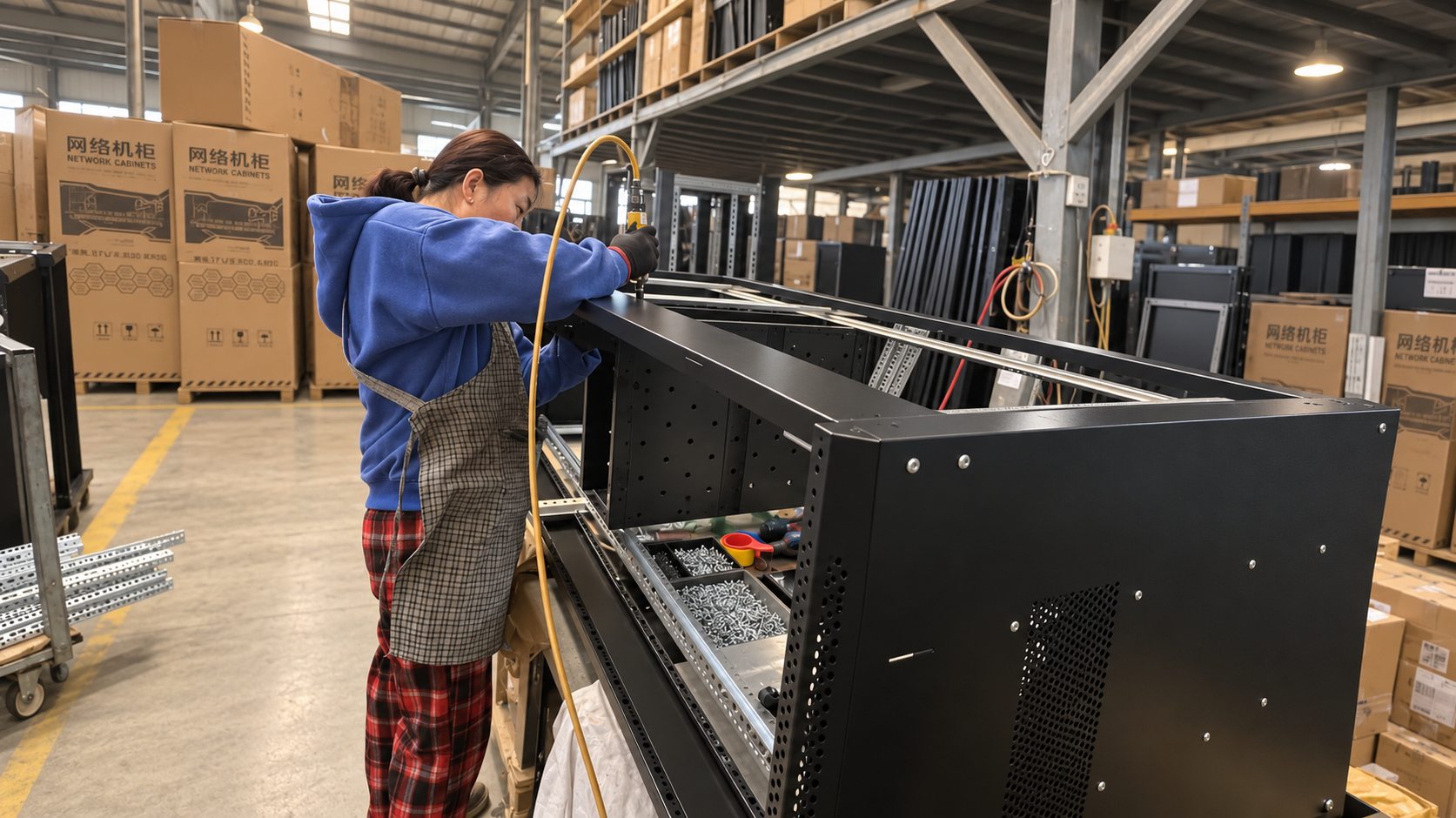

Operator fastening components into a network cabinet frame
06Assembly
QUALITY CONTROL

Check the cabinet against the confirmed configuration.

The available images show external dimension measurement, a written record and comparison with the cabinet being checked.

01
Dimensional check
02
Recorded comparison
03
Configuration verification

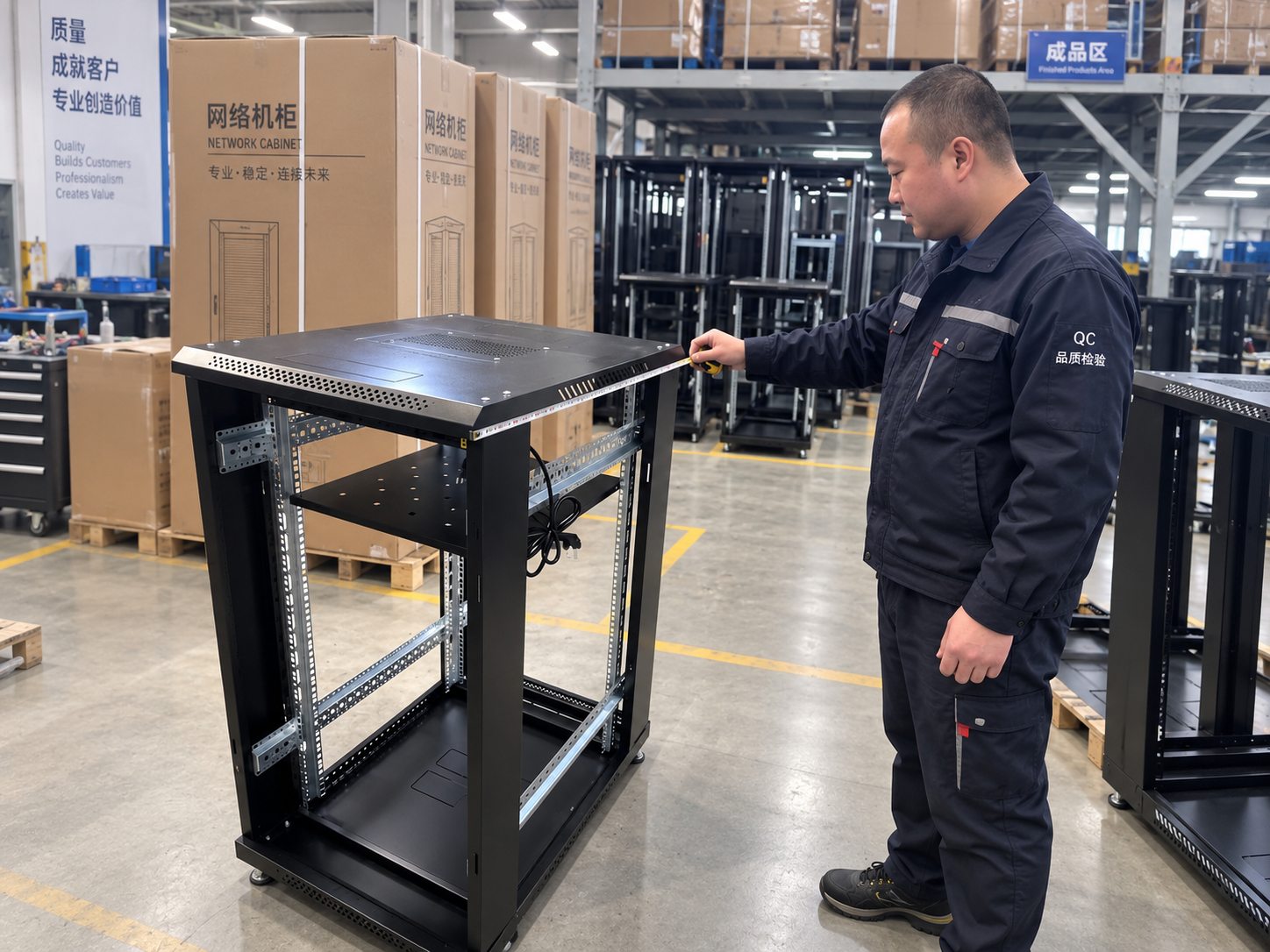

Inspector measuring the width of an assembled network cabinet
Dimensional check

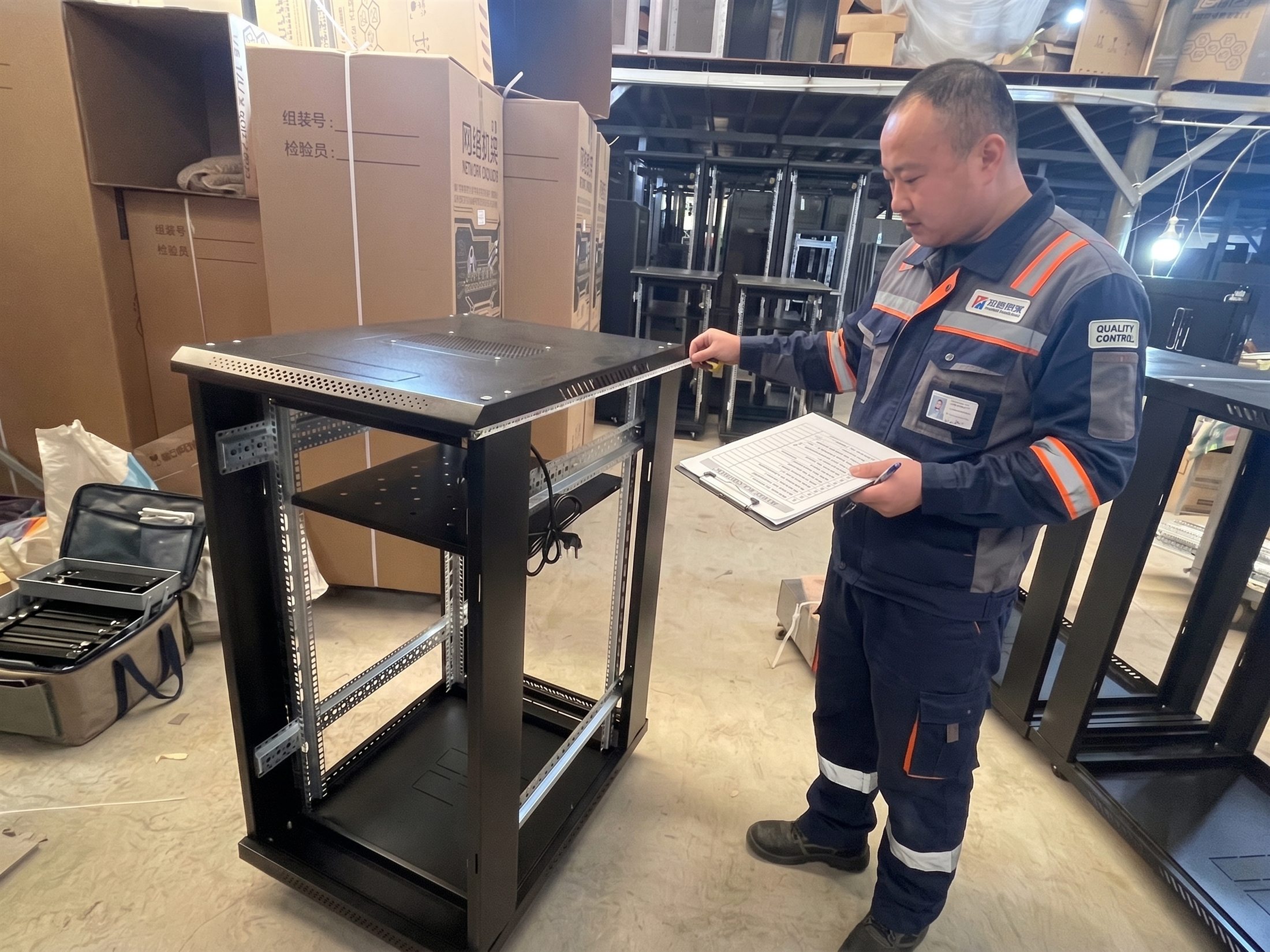

Inspector measuring an assembled cabinet while holding a written record sheet
Recorded comparison
PRODUCT-SPECIFIC FOCUS

The review follows the product.

Cabinets, rack power and project enclosures require different confirmation points. The exact scope is agreed after enquiry.

01

Cabinet & enclosure

Dimensions, doors, panels, rails, finish and accessory relationships.

02

Rack PDU

Outlet format, module selection, cable, identification and installation direction.

03

Outdoor & project products

Equipment space, cable entry, maintenance access and agreed packing requirements.

START WITH THE REQUIREMENT

Define what needs to be checked.

Send the model, quantity, destination and required configuration. Our team will confirm the practical review points with you.
